JOB n° 071973C:
JEBEL ALI REFINERY EXPANSION PROJECT – ENOC PROCESSING COMPANY L.L.C. – UNIT 44 - DUBAI
CLIENT:
IPC SRL / TECHNIP SPA
DESIGN:

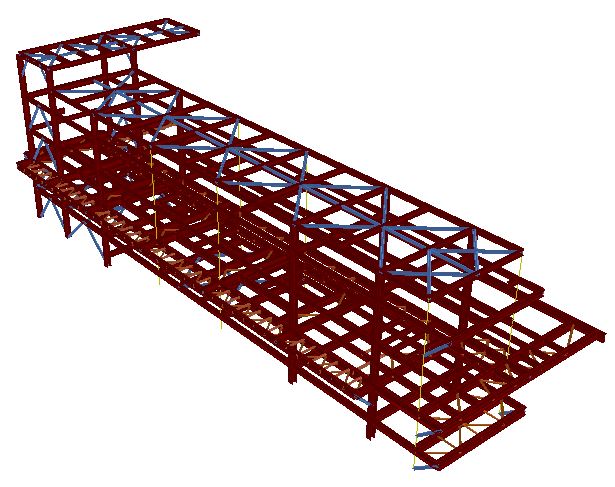

MIXED STRUCTURE PIPE RACK 44-PR-100 – SECTOR F-L
DIMENSIONS:
TOTAL LENGTH 54.0m, FRAME WIDTH 12.0m, MAX. HEIGHT 23.6m.

JOB n° 071973C:
JJEBEL ALI REFINERY EXPANSION PROJECT – ENOC PROCESSING COMPANY L.L.C. – UNIT 44 - DUBAI
CLIENT:
IPC SRL / TECHNIP SPA
DESIGN:

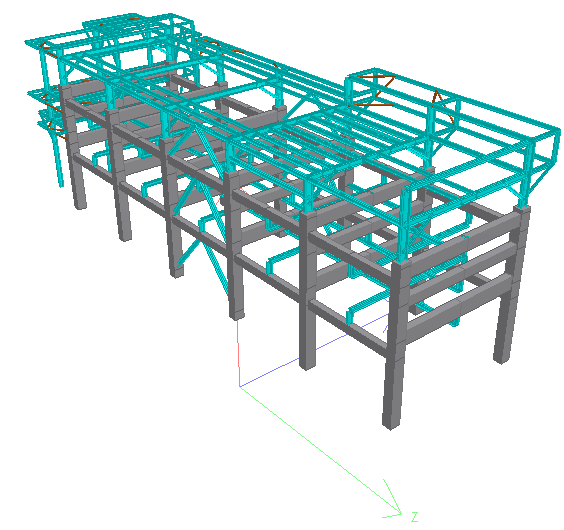

MIXED STRUCTURE PIPE RACK 44-PR-100 – SECTOR 1A-F
DIMENSIONS:
TOTAL LENGTH 49.0m, FRAME WIDTH 12.0m, MAX. HEIGHT 18.0m

JOB n° 033884:
BARZAN PIPELINE PROJECT - QATAR
CLIENT:
SAIPEM SPA
DESIGN:
BEACH VALVE STATION CONCRETE PIT
DIMENSIONS:
INTERNAL LENGTH 11.0m, INTERNAL WIDTH 11.0m, INTERNAL HEIGHT 3.9m

JOB n° 033884:
BARZAN PIPELINE PROJECT - QATAR
CLIENT:
SAIPEM SPA
DESIGN:

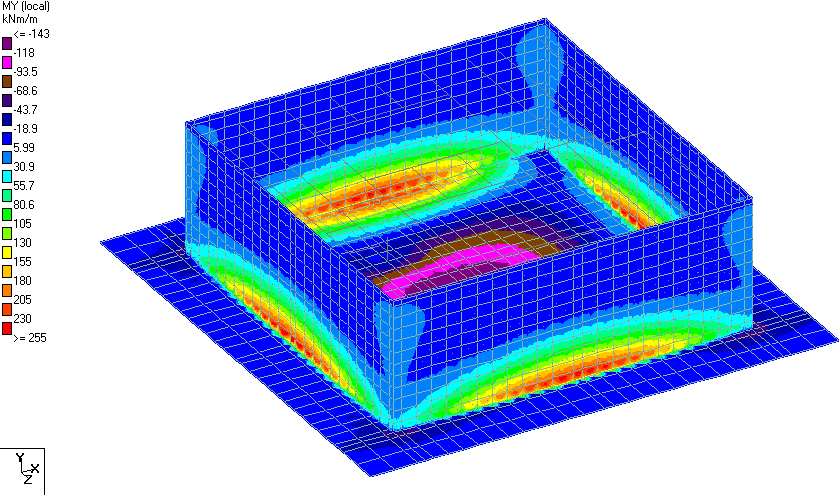

BEACH VALVE STATION CONCRETE PIT – INTERNAL MOMENTS DIAGRAMS
DIMENSIONS:
INTERNAL LENGTH 11.0m, INTERNAL WIDTH 11.0m, INTERNAL HEIGHT 3.9m

JOB n° 032206:
KOC FEED PIPELINES FOR NEW REFINERY PROJECT (NRP) - KUWAIT
CLIENT:
SAIPEM SPA
DESIGN:
STEEL PIPERACK MMA GAS OIL PUMP STATION AREA
DIMENSIONS:
TOTAL LENGTH 46.1m, FRAME WIDTH 8.0m, MAX. HEIGHT 15.3m

JOB n° 071973C:
JEBEL ALI REFINERY EXPANSION PROJECT – ENOC PROCESSING COMPANY L.L.C. – UNIT 44 - DUBAI
CLIENT:
IPC SRL / TECHNIP SPA
DESIGN:

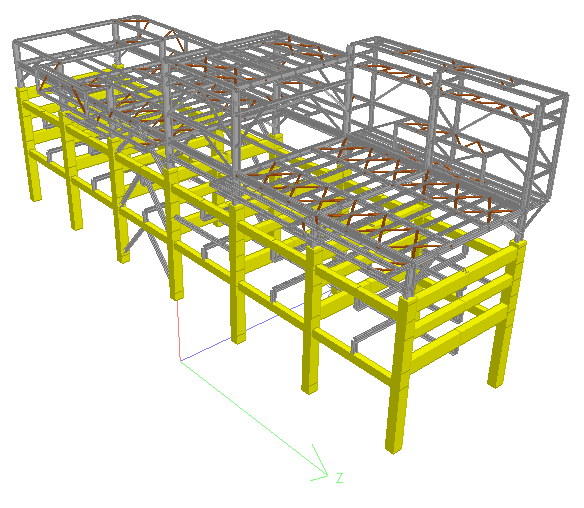

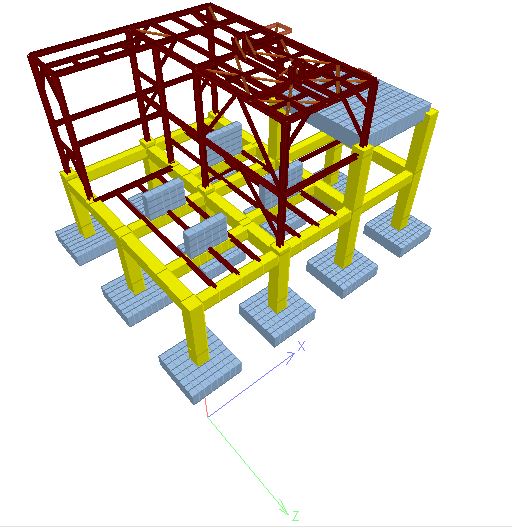

MIXED STRUCTURE STR100 + VESSELS C205/C207/C208/E207 FOUNDATIONS
DIMENSIONS:
TOTAL LENGTH 14.0m, TOTAL WIDTH 18.0m, MAX. HEIGHT 13.6m

JOB n° 071973C:
JJEBEL ALI REFINERY EXPANSION PROJECT – ENOC PROCESSING COMPANY L.L.C. – UNIT 44 - DUBAI
CLIENT:
IPC SRL / TECHNIP SPA
DESIGN:

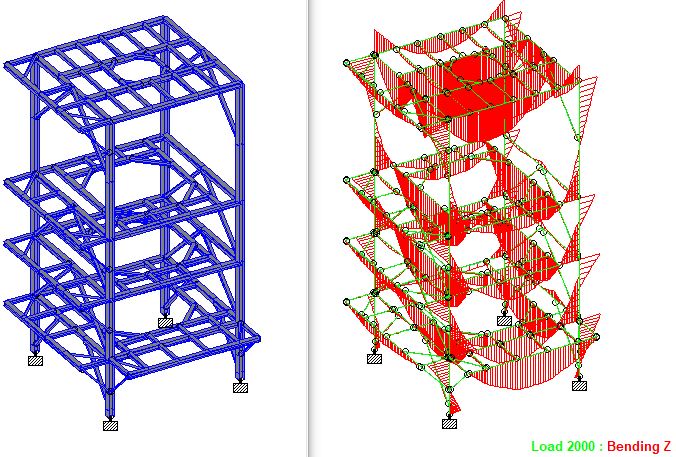

STEEL STRUCTURE STR200 – 3D MODEL AND INTERNAL MOMENT DIAGRAMS
DIMENSIONS:
TOTAL LENGTH 6.0m, FRAME WIDTH 6.0m, HEIGHT 15.4m

JOB n° 033884:
BARZAN PIPELINE PROJECT - QATAR
CLIENT:
SAIPEM SPA
DESIGN:

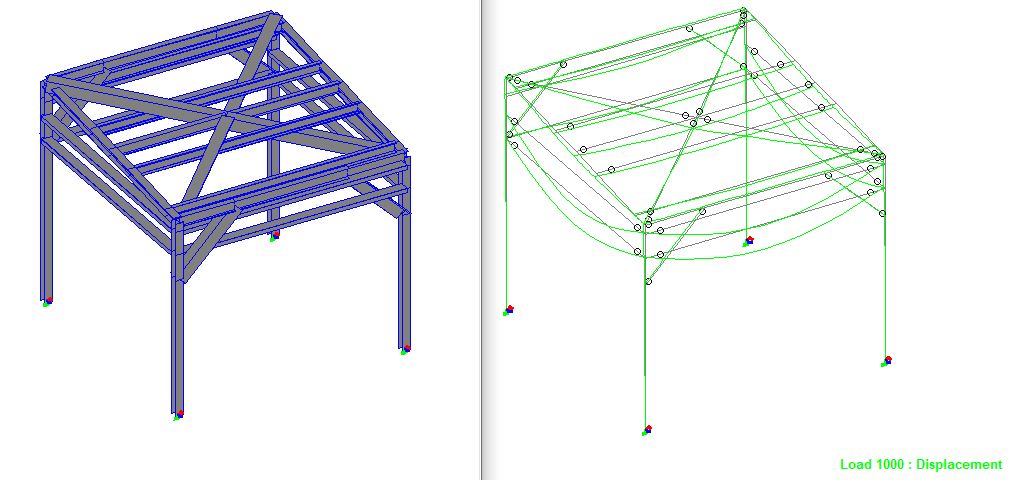

STEEL STRUCTURE SUNSHADE SH-01 – 3D MODEL AND DISPLACEMENTS DIAGRAM
DIMENSIONS:
TOTAL LENGTH 4.0m, TOTAL WIDTH 4.0m, HEIGHT 4.0m

STAAD PRO

by BENTLEY SYSTEM, Inc

STAAD PRO is a structural & civil design software.
Main Features
STAAD Pro is a comprehensive and integrated finite element analysis and design offering that includes a state-of-the-art user interface, visualization capabilities and international design codes.
It is capable of analyzing any structure exposed to static loading, a dynamic response, wind, earthquake, and moving loads. STAAD Pro is the premier FEM analysis and design tool for any type of project including towers, culverts, plants, bridges, stadiums, and marine structures.

Analysis and Design
The standard STAAD Pro analysis methods, including static elastic, p-delta, dynamic and seismic analysis routines, provide with a perfect grounding in structural and analysis requirements for an array of projects.
STAAD Pro reduces the resource hours required to properly load the structure by automating the forces caused by wind, earthquakes, snow, or vehicles.
Furthermore STAAD Pro can easily accommodate the design and loading requirements with each codes, with each material and in each country the structure is, including U.S., European (including the Eurocodes), Nordic, Indian, and Asian codes. Even special codes such as AASHTO, ASCE 52, IBC, and the U.S. aluminum code are also included.

Interoperability and Open Architecture
STAAD Pro is more than an analysis and design application. From simple importing of CAD models to creating custom links and developing third-party applications using Open- STAAD, it can be the heart of the structural solution.When integrated with ProjectWise®, STAAD.Pro models can be efficiently managed with the leading project collaboration system. By using the ISM integration, models become part of an integrated workflow.

Quality Assurance
STAAD Pro undergoes the most demanding quality and testing regime. All procedures follow the requirements of 10CFR Part 50, 10CFR21 and ASME NQA-1-2000 to approve STAAD.Pro for use on the design of nuclear installations.

License
BK STRUTTURE owns authorized license released by BENTLEY.
